Lifting elevator category

HS 8428109000

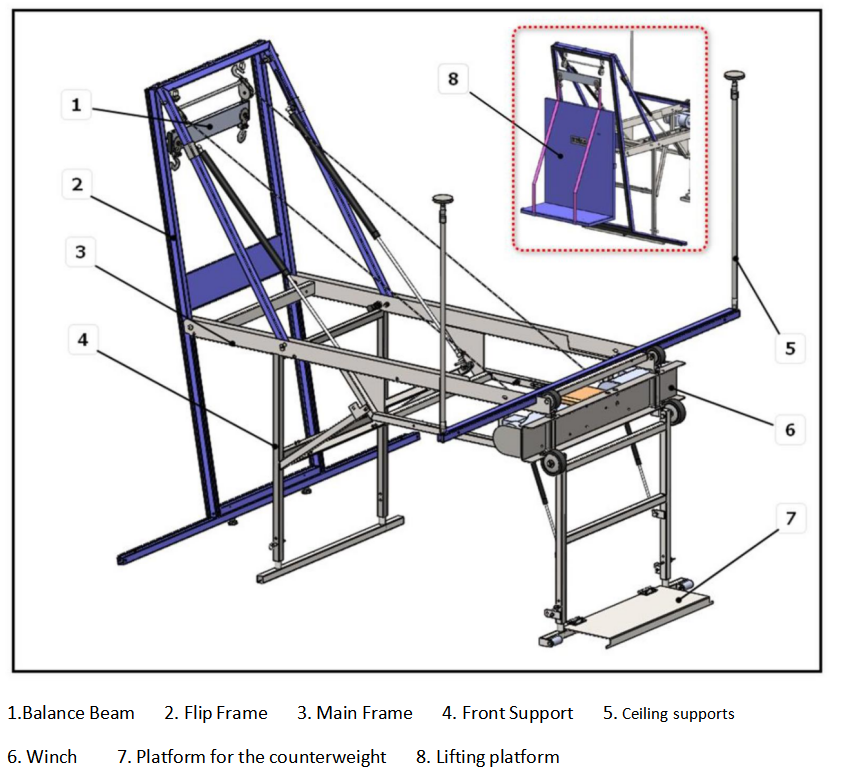

TECHNICALDESCRIPTIONThe construction lift is intended exclusively for the following uses: windows, doors, glass panes,panels etc.The building elements must not exceed the following dimensions and weights:Lengthx Width x Depth: 300 cm x 250 cm x 30 cmMax. weight: 250 kg.The construction lift can be used in the following locations:Balconies or similar building extensions.Scaffolding.Window or wall opened.Main frame dimensions: LxBxH=1920x750x370mmFrontleg support height adjustment range: 1000-1400mmRearleg support height adjustment range: 1000-1400mmCeiling supports height adjustment range: 950-1700mmSize range of sling strapping cargo:1000-2300mmTwo extension supports length: 2000mm



The lift can be pushed and moved using four wheels to another place.

Product name movable flipping elevator
Item High altitude transportation lift
motor power 2*600w
power supply 220V AC(OEM)
max load 250KG
max length 28m
max height 35m
speed 10-12m/s
MOQ 1pcs,movable flipping elevator
lifting platform inner dimensions 1000*830*350mm
