Electrically-powered lifting and ascending inspection vehicle for chicken farm, observation vehicle for shopping mall and warehouse, cargo pickup vehicle for shopping mall and warehouse, two-way driving vehicle for epidemic prevention.
- Model: 2m
- Brand: helplift
- Port:
- Quantity:
| 迷你升降登高作业车参数 Parameters of Miniature Elevating Work Platforms |
|
| 平台降落到最低点时直立导轨的最高点距离地面的高度 （整车通过门的时候所需最低的门洞口高度） The height from the highest point of the vertical guide rail to the ground when the platform is lowered to the lowest point (The minimum height of the door opening required for the entire vehicle to pass through the door) |
2000mm |
| 平台踏板最低离地高度 The minimum height of the platform pedal from the ground |
605mm |
| 平台踏板最高离地高度 The maximum height of the platform pedal from the ground |
1700mm |
| 栏杆高度 The height of the railing |
900mm |
| 车身长宽 The length and width of the vehicle body |
750mm*550mm |
| 轮距外部长宽 The outer length and width of the wheelbase |
750mm*700mm |

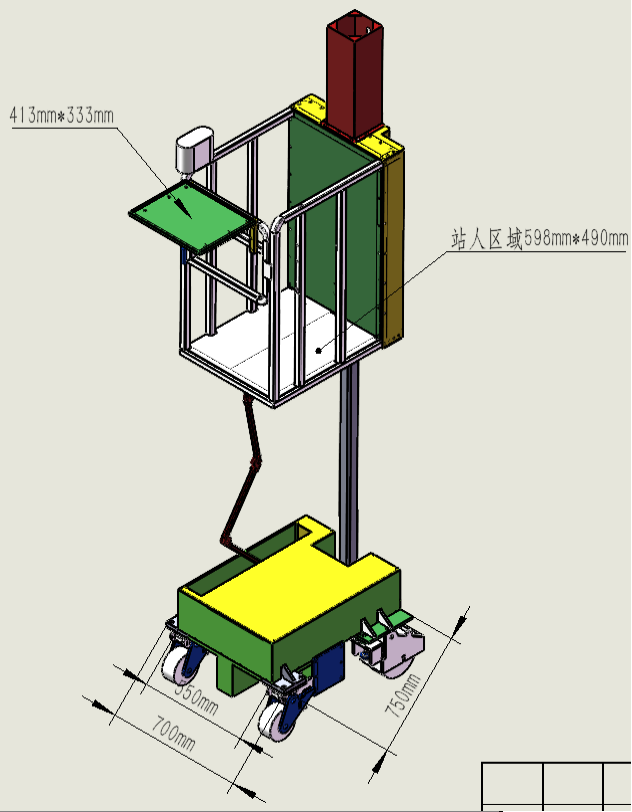

| 折叠桌板长宽 The length and width of the folding tabletop |
413mm*333mm |
| 工作平台长宽（站人区域） The length and width of the working platform (the area for standing) |
598mm*490mm |
| 电机数量 The number of motors |
2台 2 units |
| 电机功率 The power of the motors |
2x350W |
| 动力轮数量及尺寸 The number and size of the driving wheels |
2个、8寸 2, 8-inch |
| 万向轮数量及尺寸 The number and size of the castor wheels |
2个、6寸 2, 6-inch |
| 后轮减震悬挂 Rear wheel shock absorption suspension |
标配 Standard |
| 前轮减震悬挂 Front wheel shock absorption suspension |
标配 Standard |
| 平台防止坠落的保险功能 The anti - fall safety function of the platform |
标配 Standard |
| 平台载重质量 The load - bearing capacity of the platform |
150KG |
| 重量（裸车） The weight (unladen vehicle) |
300～350KG |
| 电池 The batteries |
2块超威铅酸石墨烯电池12+12=24V 45AH 2 Chaowei lead - acid graphene batteries, 12+12 = 24V, 45AH |
| 标况理论续航 The theoretical cruising range under standard conditions |
2～3小时 2 - 3 hours |
| 最高功率连续续航 Continuous cruising range at maximum power |
1小时 1 hour |
| 平台未升起时行驶速度 The driving speed when the platform is not raised |
4公里每小时 4 km/h |
| 平台升起时行驶速度 The driving speed when the platform is raised |
1公里每小时 1 km/h |
| 其他配置 Other configurations |
电池总开关、24V专用充电器*1 Battery main switch, 1 24V dedicated charger |
| 基本功能描述 Description of basic functions |
单手操作电子摇杆自行走：前进、后退、转弯、原地自转。平台：升起、降落。 Self - propelled with one - hand - operated electronic joystick: forward, backward, turning, in - place rotation. Platform: raise, lower. |
